AC_FDM_Component manages the menu’s entries and their placements. It supports runtime operations such as:
  • Add entries
  • Remove entries
  • Move entries to new locations
  • Swap entry locations
Entries are standard UObject instances that implement the entry interface BPI_FDM_Entry. The component treats entries as data + behavior providers, while the UI is responsible for visualization.

​
Adding Entry

image36 When a new entry has been added, “On Entry Added” interface function gets called on SourceObject and the “OnNewEntryAdded(Added Entry)” event gets triggered.

​
Removing Entry

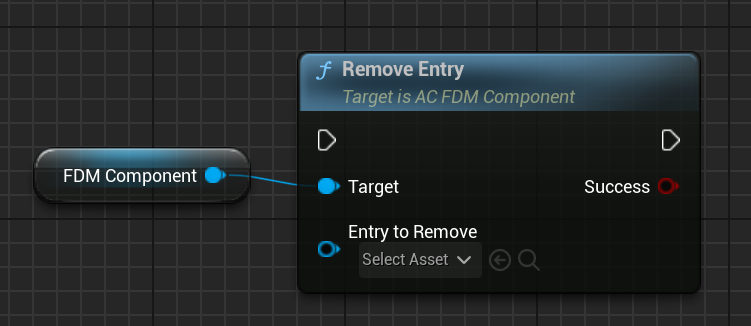

image37 When you remove an entry, “On Entry Removed” interface function gets called and the “OnEntryPlacementsChanged(ChangedEntries)” event gets triggered.

​
Getting An Entry / Location

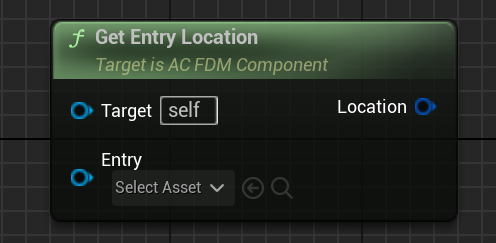

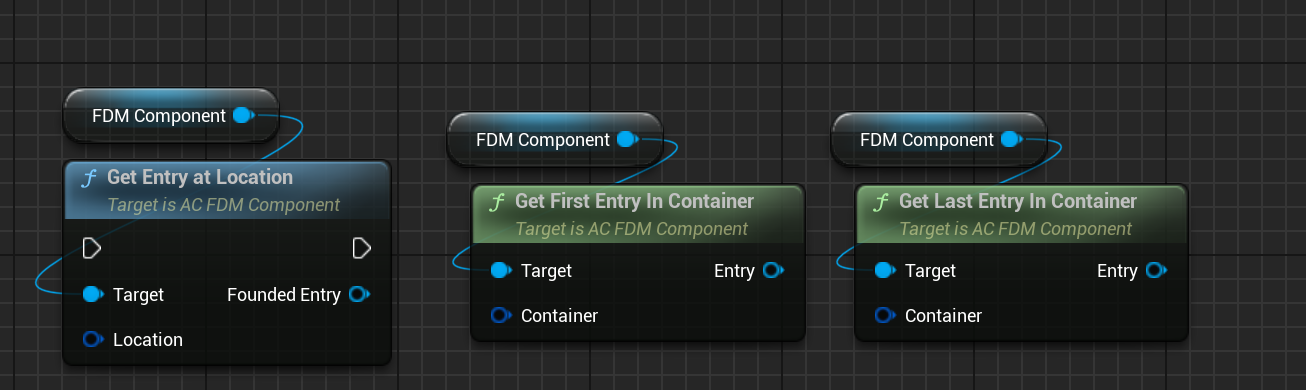

You can use some query functions for that. image38 image39

​
Changing An Entry’s Location

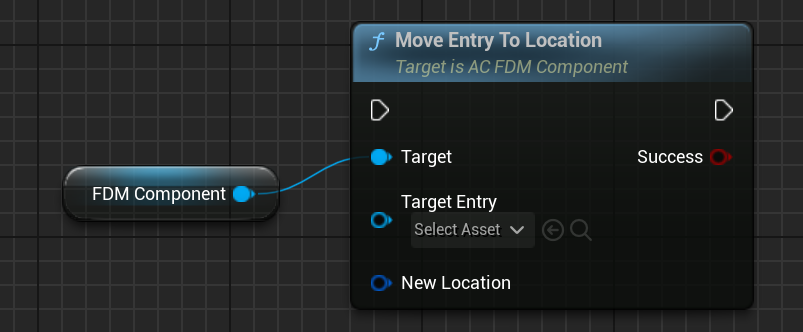

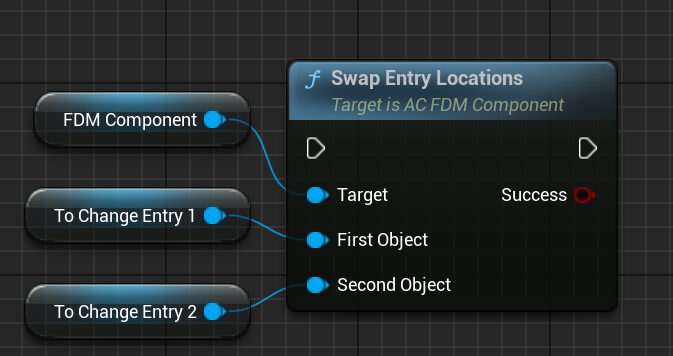

You can use “Move Entry To Location” to move an entry to a specific location. If there is already an entry in the new location, it will swap their locations automatically. image40 or you can swap 2 entry locations using “Swap Entry Locations” function. image41 When an entry’s location has been changed, “On Entry Placements Changed” event gets triggered
